Because each membrane has different advantages, in water and wastewater treatment, selection between hollow fiber membrane vs flat sheets membrane can be like choosing a favourite baby. Let us check their distinctions in plain language so that you can choose the person who is best for your project.

What Do Hollow Fiber Membranes Do?

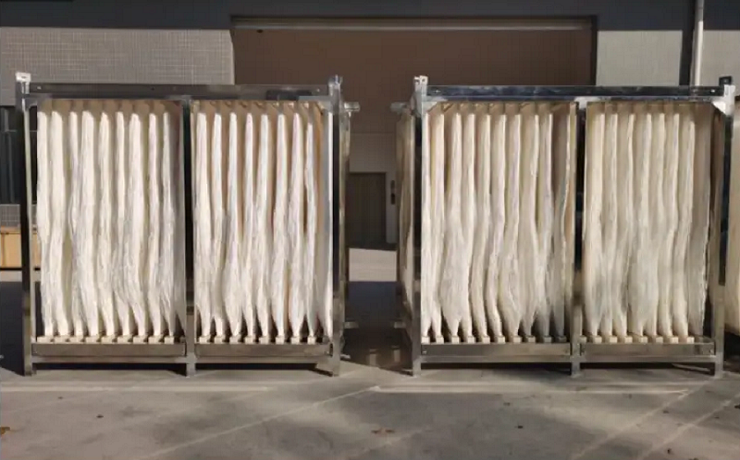

These membranes are made up of bundles of very thin straw-like fibers. Often made of PVDF or PES, these fibers pack a huge surface area into a small module. You can run water inside the straw and collect filtered water outside, or vice versa. The result? Tons of filter area in a compact space.

• Space saver: Up to 10,000 m² per cubic meter.
• Easy cleaning: Backwash inside the fibers; air scouring shakes off fouling.
• Durable: If one fiber clogs, the rest keep working.

What Are Flat Sheet Membranes?

Flat sheet membranes are like pages in a book—thin polymer films on a support layer, slotted into frames. Water flows across the surface, making them easy to inspect and clean by hand. Ideal for smaller setups or where you need quick access.

• Simple design: Flat panels in cassettes.
• Manual cleaning: Flush or scrub the surface.
• Reliable: Even flow distribution across each sheet.

Structural and Material Composition

Membrane Materials

• PVDF: Excellent chemical resistance and mechanical strength

• PES: High flux rates, thermal stability

• PAN: Cost-effective with moderate fouling resistance

Geometry and Support

• Hollow Fiber: Self-supporting fibers, no extra mesh needed. Thin lumen walls (30–100 µm) allow rapid mass transfer.

• Flat Sheet: Backed by nonwoven fabrics or mesh supports. Active layer thickness ~20–50 µm.

Performance and Efficiency Metrics

Membrane Area and Packing Density

• Hollow Fiber: Up to 50% higher packing density than flat sheets, translating into a compact footprint.

• Flat Sheet: Limited by cassette dimensions; more tank volume needed for equivalent area.

Permeate Flux and Rejection

Typical permeate flux ranges:

• Hollow Fiber UF: 50–150 L/m²·h

• Flat Sheet UF: 40–120 L/m²·h

Both achieve high removal rates for bacteria, suspended solids, and colloids. MF variants remove larger particulates and operate at lower pressures (0.1–0.2 bar).

Transmembrane Pressure (TMP)

• Hollow Fiber: pressures of 0.1 to 0.3 bar are used for UF and 0.02 to 0.1 bar for MF.
• Flat Sheet: 0.2–0.4 bar (UF), slightly higher due to flow channel resistance

Fouling Behavior and Cleaning Strategies

Fouling Mechanisms

• Hollow Fiber: More prone to internal pore blocking; cake layer forms on outer surface during outside-in mode.

• Flat Sheet: Surface fouling predominant; foulants accumulate on flat face, leading to cake resistance.

Cleaning Protocols

• Hollow Fiber:
  • Backwash cycles: 5–15 minutes every 15–30 minutes of operation

  • Air scouring: 5–10% air-to-water ratio to disrupt fouling layer

  • Chemical Clean-In-Place (CIP) with caustic or acid solutions quarterly

• Flat Sheet:
  • Surface flushing: cross-flow or gentle back-flushing (limited)

  • Manual scraping/brush cleaning during shutdowns

  • CIP frequency: monthly to quarterly depending on fouling severity

Maintenance and Module Lifecycle

Replacement and Downtime

• Hollow Fiber: Lightweight modules (<50 kg), quick-swap design. Single fiber failure rarely impacts overall performance.

• Flat Sheet: Heavier cassettes (50–200 kg), often require hoists. A torn sheet necessitates full cassette replacement.

Reliability and Durability

Modules from Oxymotec undergo rigorous testing for mechanical integrity and chemical compatibility. Discover more through our hollow fiber membrane or check our full range of water recovery solutions to see how we support diverse filtration challenges.

Cost Analysis and Scalability

Capital Expenditure (CAPEX)

• Hollow Fiber: Lower module costs per m² due to simpler extrusion processes.

• Flat Sheet: Higher framing and support structure costs, larger tank footprints.

Operational Expenditure (OPEX)

• Energy: Lower TMP and reduced aeration requirements for hollow fiber MBRs reduce energy by up to 30%.

• Chemicals: Fewer CIP cycles lower chemical consumption by 15–20% in hollow fiber systems.

Modular Expansion

Both systems can be scaled by adding parallel units. Hollow fiber modules, due to their compact size, simplify expansion planning.

Environmental and Sustainability Considerations

• Material Recycling: PVDF and PES membranes pose recycling challenges. Advances in polymer recovery are more established for hollow fibers due to smaller module sizes.

• Chemical Use: Fewer cleaning chemicals in hollow fiber systems reduce environmental footprint. Discover how Oxymotec’s sustainable membrane solutions support greener operations.

• Energy Efficiency: Compact design of hollow fibers reduces pumping and aeration energy demands, showcased in our MBR modules designed for low-energy consumption.

Applications and Case Studies

• Material Recycling: PVDF and PES membranes pose recycling challenges. Advances in polymer recovery are more established for hollow fibers due to their smaller module sizes. Learn about sustainability in membrane technology on the Membrane Bioreactor page.

• Chemical Use: Fewer cleaning chemicals in hollow fiber systems reduce environmental footprint.

• Energy Efficiency: Compact design of hollow fibers reduces pumping and aeration energy demands.

Applications and Case Studies

• Municipal MBRs: Hollow fiber modules are widely used for municipal wastewater reuse projects, achieving >95% COD removal.

• Industrial Filtration: Flat sheet membranes serve in food & beverage for juice clarification, where ease of cleaning and inspection is critical.

• Biopharmaceuticals: Flat-sheet UF modules ensure sterile filtration under controlled conditions—learn more in our technical resources.



Why Industry Leaders Choose These

Oxymotec’s hollow fiber modules deliver compact, energy-efficient filtration—no wonder they’re a go-to in large-scale MBR plants. When comparing hollow fiber membrane vs flat sheets membrane, hollow fibers often offer higher packing density and easier maintenance. Stealthily integrating our hollow fiber membrane modules can boost throughput without expanding your footprint. For broader system design, explore Oxymotec’s innovative water treatment solutions that pair membranes with smart controls.

Frequently Asked Questions

Which is better, microfiber or hollow fibre?
“Microfiber” in filtration usually means flat-sheet microfiltration. If you need high capacity and compact modules, hollow fibers win. For easy side-by-side cleaning, microfiber panels are a solid choice.

What is the advantage of a hollow fiber?
Tiny tubes pack maximum area in minimum space, support backwash cleaning, and tolerate individual fiber fouling without shutdown.

How thick is a hollow fiber?
These membranes are just 0.5–2 mm in outer diameter, with walls only tens of microns thick.

Which is better, microfiber or hollow fiber?
Depends on your priorities: flux and footprint (hollow fiber) or manual access and familiarity (flat sheet). A pilot trial usually seals the deal.
