The technology of the hollow fiber membrane has entered the global arena of water treatment, and it is a game-changer. These improved filtration systems have changed the face of the contact we make with wastewater treatment, desalination, and production of clean water in industries. With their large surface area and efficiency, they will provide better performance than traditional meantime of filtration.

The Global Membrane Technology Market is estimated to reach $ 9.2 billion by 2027, with an important part of this development with the accounting of the hollow fiber membrane. Their special structure and work efficiency is an ultimate in modern water treatment systems including municipal wastewater plants, high purity drug water systems.

What is a hollow fiber membrane?

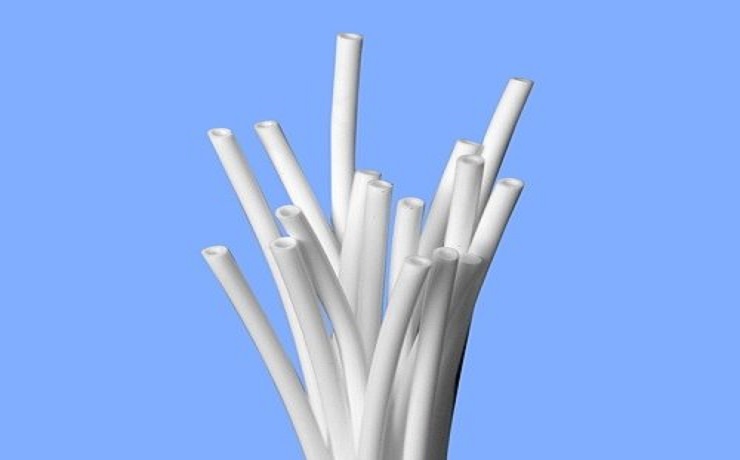

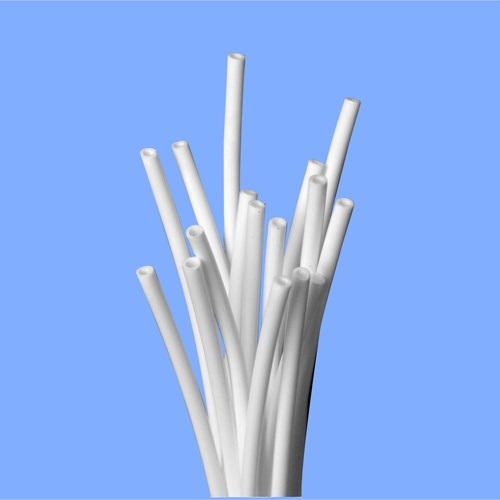

Hollow fiber membrane is a complex filtration material consisting of millions of delicate straw-like strands which are at the same time wound up in modular formation.

Each fiber usually measures between 0.5-2 mm diameter, with walls containing pores from 0.01 to 0.1 μm depending on the application.

Major structural features:

• Hollow cylindrical design maximizes the surface area for filtration.
• Microscopic pores properly control what passes through.
• Self-support structure removes additional support material.
• High packing density allows compact system design.

These membranes are made up of advanced polymer materials:

• Polyvinylidene fluoride (PVDF)– extraordinary chemical resistance
• Polytharculphone (PES)– excellent thermal stability
• Polychrilonitryl (PAN)– provides better fouling resistance

Science behind Hollow Fiber Solutions

Understanding science behind hollow fiber membrane operation, requires to examine their unique filtration mechanisms:

Funding process breakdown:

• Feed Introduction: Contaminant Water moves through the membrane under pressure.
• Selective transit: Water molecules pass through microscopic particles while contaminants are rejected.
• Focused management: Maintained pollutants have been washed away continuously.
• Permeate Collection: Purified water is collected from fiber lumens.

Key Operational Modes:

• Dead-end filtration: Simple but needs frequent backwashing
• Cross-Flow Filtration: More efficient for challenging feeds
• Vacuum-driven filtration: Energy efficient for some applications



The advantage of hollow fiber membrane lies in its spacious surface area- a single module can contain thousands of fibers that provide hundreds of square meters of filtration area in a compact footprint.

Extensive guides for different types of hollow fiber membrane

Demand different applications specific membrane characteristics:

1. Microfiltration (MF) Membranes

• Pore size: 0.1-10 μm
• Removes: bacteria, suspended solid, large colloid
• Applications: preetment, clarification, cold sterilization

2. Ultrafiltration (UF) Membranes

• Pore size: 0.01-0.1 microns
• Removes: Viruses, proteins, endotoxins
• Applications: RO pretreatment, wastewater reuse

3. Nanofiltration (NF) Membranes

• Pore size: ~ 0.001 μm
• Removes: divalent ion, small organics
• Applications: softening water, removing color



Transformational Industries using Cutting-Edge Applications

Hollow Fiber Membrane Innovation is going across many areas:

Municipal water treatment

• Advanced wastewater remedies for re-use of water
• Compact MBR System Place Traditional Active Mud
• Drinking water refinement removal of pathogens

Industrial Applications

• Food and beverage processing water
• Pharmaceutical for injection (WFI)
• Semiconductor ultrapure water production

Special application

• Bioreactors for cell culture
• Gas separation process
• Blood dialysis in medical devices

Technical benefits over traditional systems

This is how other filtration technologies compare hollow fiber membranes:

Performing benefits

• 10–100X are obtained with efficient flow paths due to a flat sheet or spiral wound.
• low energy consumption compared to the high surface area
• Higher rates achievable with proper design.

Operational Advantages

• Modular design allows easy capacity expansion
• Automation compatibility for smart water systems
• Chemical resistance for challenging feeds

Economic Benefits

• Smaller footprint reduces civil costs
• Longer membrane life with proper maintenance
• Reduced sludge production versus conventional treatment

Today upgrade your water treatment with a hollow fiber membrane solution of oxymotec.

Advanced maintenance protocol for optimal performance

Proper care membrane expands life and maintains performance:

Preventive Maintenance

• Monitoring daily broadcast pressure
• Weekly integrity test
• Monthly flow measurement

Cleaning process

• Hydraulic cleaning

1. Regular back pulsing
2. Air scouring

• Chemical cleaning

1. Acid cleaning for inorganic foulants
2. Alkaline cleaning for organic foulants
3. Disintegration protocol

• Troubleshooting of general issues

1. Fouling mitigation strategies
2. Prevention of fiber breaking
3. Biofilm control technique

Future trends in hollow fiber membrane technology

The next generation of hollow fiber membrane will have:

Material innovation

• Graphene-dominated membrane
• Biometric surface modification
• Self-healing polymer composite

Smart membrane system

• Embedded sensor for real -time monitoring
• AI operated adaptation algorithm
• Future maintenance capacity

Stability focus

• Low energy consumption design
• Recurring membrane material
• Zero liquid discharge integration

Stay at the forefront with innovative membrane solutions of Oxymotec.

Conclusion: The future of water treatment

The hollow fiber membrane technology represents the standard of gold in modern water treatment, providing unique efficiency, reliability and versatility. As the challenges of water scarcity increase and the rules become tough, these advanced filtration systems will play an important role in permanent water management worldwide.

Experts rely on Oxymotec to give the performance of water treatment that exceeds expectations, supported by our hollow fiber membrane solutions. Discover how our innovative solutions can be tailored to transform your water treatment process and create the perfect system for your needs today.
